Industrial Tortilla Making Machine With High Capacity 3600-8200 Pcs/H

Parameter

Main machine

Dough Conveyor

It can convey 2-3 rows dough ball with adjustable distance.

Presser

1. Cycles in a minute: 20 - 35 times?
2. Capacity for each size:
3. 3600 pcs/hour for 25cm (10”)
4. Frame: stainless steel, heavy duty
5. Working temperature: 0 - 300℃
6. Servo tracking continuous pressing
7. teflonnn belt runs at constant speed
8. Size of press heating plate: 65x65cm
9. 4 pcs /time for 25cm (10")
The pressing time is closely related according to the size of the tortilla and the temperature of heating plate. The temperature can be controlled separately, and the temperature error is ±3℃. The machine frame is made of stainless steel, and the pressing area is heavy duty steel plate with painting treatment.

Oven

1. Isolation system: critical parts covered with stone wool
2. Frame : stainless steel, heavy duty
3. Drive system : by motor
4. Continuous system: yes
5. Baking time: 30 - 90 seconds

The oven has three layers in total. The upper two layers are stainless steel heating chain plate, and the lowest layer is stainless steel conveyor mesh belt. Each layer of heating chain plate is equipped with 4 sets of gas heating system, which can be controlled separately. The heating chain plate and bottom mesh belt can be adjusted to meet the baking time which is required for different tortillas. It is equipped with electronic ignition system, flame detection and alarm system. The machine frame is made of stainless steel.

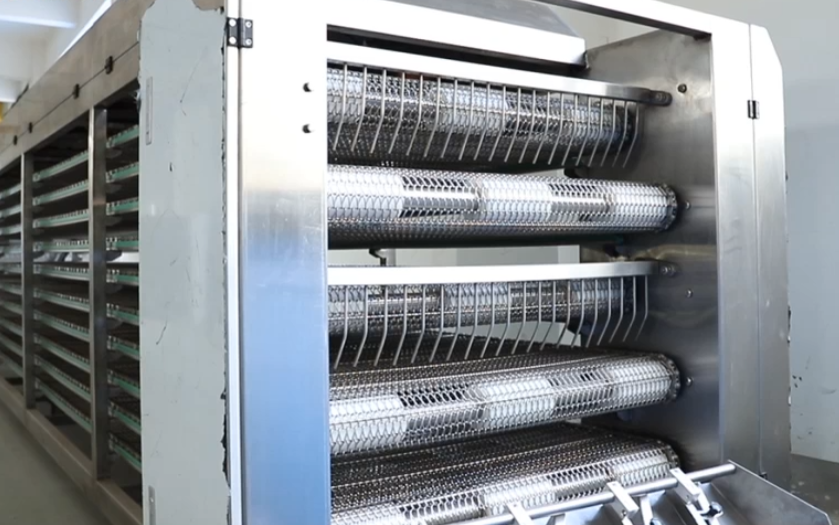

Cooling line

5-layer and 6-metre high cooling system, each layer can individually control the conveying speed, the top is equipped with cooling fan.

Counter & Stacker

Multiple cylinders are combined with the detection and counting system to control the number of stacked tortillas, the stacked quantity can be adjusted.

SSS Food Machinery Technology Co., Ltd. is a leading supplier of food processing machinery in China. We devote ourselves to research and develop the equipment including not only common types but also customized ones, our distinguished advantage is we can produce & design equipment as per your real situation and provide you with flexible solutions.

Our service ranges from design and manufacture to sale as well as consultation. We are mainly specialized in fruit & vegetable processing line, tortilla production line, other food making machines etc.

Our engineering team has more than 20 years' professional experience in the food making, fruit and vegetable fine processing field. Taking advantage of advanced technology and innovative design conception as well as rich experience in turnkey projects, we have been providing the highest level equipment for customers from all over the world. Our main markets are Russia, UK, USA, Brazil, New Zealand, Southeast Asia, Australia, Africa and so on.

Over the past years, we have become a long-term supplier for many companies and helped many plants establish their production lines. Based on superior quality, competitive price and the best service, we have gained great approval from customers.
