3000pcs Per Hour Pocket Bread Pita Bread Arabic Bread Production Line

Process flow:

Dough pressing----dough forming---baking----cooling

Components

item	specification	Description

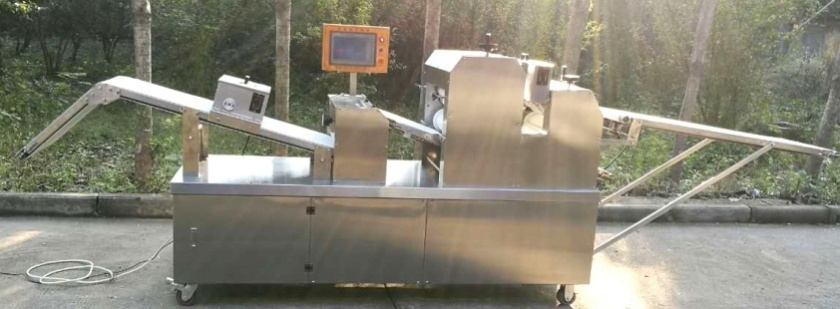

Dough pressing	4800*700*1800mm 3.8kw	1. Three-way pressing of the dough, each pressed dough has an independent automatic feeding function (independent speed adjustment) 2. Touch screen operation (10 inches 3. The main conveyor belt is independently controlled, and there are dust removal devices on both sides. 4. Taiwan OTT gear motor, DELTA PLC, imported PUC conveyor belt, Kunlun Tongtai touch screen. 5. The main body cover is made of stainless steel 304
Dough forming	4800*700*1600mm 1kw	1.Pneumatic die stamping type 2. 1 set of abrasive tools 3. Collect excess dough in both directions
baking	6000*900*1400mm 9kw	Fully automatic temperature control. The principle is that the cold air is sent by the fan to the electric heating element installed on the wall of the air duct in the furnace, and it is heated into hot air, which enters the drying duct from the bottom through the baffle. The hot air and the product heat exchange and carry a large amount of moisture through the top row. It is discharged out of the oven. The product runs from one end of the oven through chains, gears and roller supports. After the product is dried or shaped, it comes out from the other end. The speed is adjusted by a speed-regulating motor to achieve the ideal drying effect and output. The machine has the advantages of stable operation, simple operation, high thermal efficiency, etc.
Cooling line	3500*900*1400mm 3kw	Absorption-climbing type, 9-layer and 6-metre high cooling system, each layer can individually control the conveying speed, the top is equipped with cooling fan.

SSS Food Machinery Technology Co., Ltd. is a leading supplier of food processing machinery in China. We devote ourselves to research and develop the equipment including not only common types but also customized ones, our distinguished advantage is we can produce & design equipment as per your real situation and provide you with flexible solutions.

Our service ranges from design and manufacture to sale as well as consultation. We are mainly specialized in fruit & vegetable processing line, tortilla production line, other food making machines etc.

Our engineering team has more than 20 years' professional experience in the food making, fruit and vegetable fine processing field. Taking advantage of advanced technology and innovative design conception as well as rich experience in turnkey projects, we have been providing the highest level equipment for customers from all over the world. Our main markets are Russia, UK, USA, Brazil, New Zealand, Southeast Asia, Australia, Africa and so on.

Over the past years, we have become a long-term supplier for many companies and helped many plants establish their production lines. Based on superior quality, competitive price and the best service, we have gained great approval from customers.
