Passion Fruit And Mango Processing Line 200kg Per Hour

    Buy cheap Passion Fruit And Mango Processing Line 200kg Per Hour from wholesalers

    Buy cheap Passion Fruit And Mango Processing Line 200kg Per Hour from wholesalers
    • Buy cheap Passion Fruit And Mango Processing Line 200kg Per Hour from wholesalers

    Passion Fruit And Mango Processing Line 200kg Per Hour

    Ask Lasest Price
    Brand Name : sss
    Model Number : customzied
    Price : usd 500000
    Payment Terms : L/C, T/T
    Supply Ability : 10sets/year
    Delivery Time : 120days
    • Product Details
    • Company Profile

    Passion Fruit And Mango Processing Line 200kg Per Hour

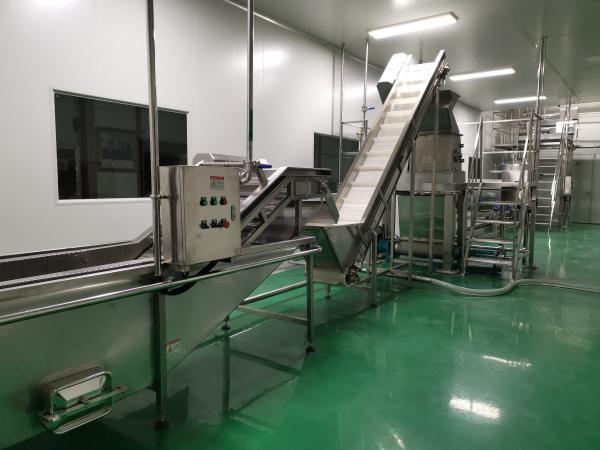

    200kg per hour Passion fruit and mango dry production line


    200kg per hour Passion fruit and mango dry production line consists of fruit pretreatment unit, drying,sterrilization,packing,control system

    project
    System and device name
    Main technical parameters
    A1
    Cleaning machine
    production capacity :200KG/H
    Ø Øadopts SUS304 stainless steel;
    Ø Ø host SUS304 stainless steel;
    Ø Water consumption: 0.2t /H
    Ø Øchain adopts SUS304 stainless steel chain;
    Ø Ø power: 3kw
    Ø Ø ~ long 3000mm* wide 450* high 800
    A2
    Rinsing machine

    Ø Ø production capacity :200KG/H
    Ø Ø adopts SUS304 stainless steel;
    Ø Ø host SUS304 stainless steel;
    Ø Water consumption: 0.2t /H
    Ø Ø chain adopts SUS304 stainless steel chain;
    Ø Ø power: 3kw
    Ø Ø ~ long 3000mm* wide 450* high 800
    A3
    lift

    Ø Ø yield: 200KG/H
    Ø Ø adopts SUS304 stainless steel
    Ø Ø net belt uses a PTFE cloth conveyor belt
    Ø Ø power: 0.75kW
    Ø Ø ~ 3200mm* width 450* height 1800
    A4
    Peeling machine

    Output: 1200 PCS/hour
    Thickness: 1, 5 mm
    Fruit diameter: 40-100
    Fruit height of adaptation: 40-120
    Power: 0.6 kW
    Voltage: 220V,50/60Hz
    Weight: 320 kg
    Appearance: 1700 * 850 * 1800
    A5
    Passion fruit seed removing machine

    Output: 1 ton/hour
    Thickness: 1, 5 mm
    Power: 1.1 kW
    Voltage: 380V,50/60Hz
    Weight: 620 kg
    Appearance: 2100 * 800 * 1600
    A6
    dryer
    Ø Ø rated processing capacity: 100kg drying oven is to heat and dry the dried material under sealed condition, which accelerates
    the drying rate.
    Ø Ø baking frame layer: multiple layers
    Ø Ø baking frame intermittent: 102mm
    Ø Ø temperature: adjustable 35-120 degrees,
    Ø Ø heating employs electric heating or steam heating
    Ø Ø installed capacity: 9KW
    A7
    Sugar system equipment

    Ø Ø Capacity: 500L;
    Ø Ø vacuum: -0.08mpa;
    Ø Ø Three layer sleeve tank design;
    Ø Ø adopts steam heat transfer;
    Ø Ø vacuum pump Adopts domestic brand vacuum pump;
    Ø Ø soda separator;
    Ø Ø pipeline valve;
    Ø Ø adopts SUS304 stainless steel;
    Ø Ø size: 3600*2000*1800mm (l * W * h);
    Ø Ø weight: 500KG
    A8
    Select line

    Ø Ø yield: 200KG/H
    Ø Ø SUS is manufactured in stainless steel
    Ø Ø net belt uses a PTFE cloth conveyor belt
    Ø Ø power: 1.5kW
    Ø Ø dimensions: 4500*400*1100mm
    Ø Ø weight: 120kg
    A9
    Microwave sterilizer
    Ø Ø capacity: 200KG/H
    Ø Ø adopts SUS304 stainless steel
    Ø Ø ~ 5000mm* width 600* height 1500
    A10
    Automatic packing, weighing and conveying line, coding
    1.Weighing range: 30-1000g
    2. Single bucket volume: 1.3L
    3. Weighing accuracy: 0.1-1.0g
    4. Weighing speed: 30-130bag/min
    5. Driving mode: stepper motor
    6.Power supply: 220 v / 50 hz
    7, power rate: 2000WVertical packing machine
    1. 1. Bag size: width 55-200mm
    2. The length of 60-300 - mm
    3. The equipment quotation includes one bag size mold,
    4. 2. Packaging speed: 40-75bag/min
    5. 3. Power supply: 220V/50HZ
    6. 4. Power: 3.0KW
    7. 5 compressed air 6-8kg
    8. 6. Gas consumption: 0.4m3/min
    9. 7. Weight 800 kg
    10. 1. Power: 60W
    11. 2. Conveying speed of 100bag/min
    12. 3. Power 220 v / 50 hz
    13. 4. 60 kg in weight Stainless steel Z type material handling equipment
    14. (including bin vibration)
    1.Lifting capacity: 7200L/h
    2. Single bucket volume: 1.84L
    3.Power supply: 3 Phase 380V,50-60 Hz
    15. Power rate: 750W
    16. length 6000mm* width 1800* height 2800
    A11
    conveying

    Ø Ø A delivery line required for a complete set of equipment
    Ø Ø adopts food grade plastic chain board;
    Ø Electric motor adopts stepless speed regulation;
    Ø Ø speed adjustable
    Ø Ø bracket is made of stainless steel
    Ø Øheight adjustable 0.4 m
    Ø Ø~ 4000mm* wide 350* high 600
    A12
    Hand-held Printer (large character)
    Ø Ø 1. The most lightweight 4 in 1 design, controller, screen, card box and nozzle into one.
    Ø Ø 2.2.8 inch color backlight large LCD screen, enables visibility.
    Ø Ø 3. Operates completely independently, without computer connection.
    Ø 4.U2 special pocket remote control, easy to operate.
    Ø Ø 5.SD card, adjustable
